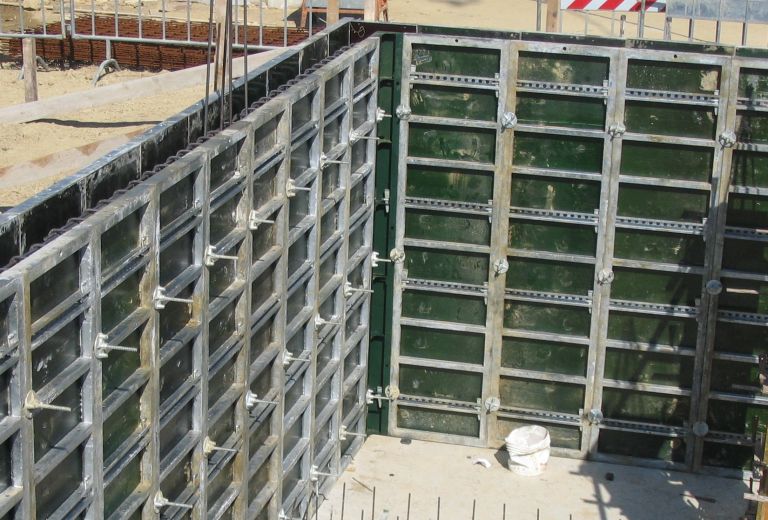

Modular panels for walls and variable-section columns
Features
- Dimensions: 75×300 cm base panel + sub-sizes
- Frame: steel, 75 mm thickness
- Plywood lining: 15 mm thickness, treated with phenolic resins
- Corrosion protection: hot-dip galvanizing or painting
- Main accessories for connecting panels: pins with wedges
- Weight: 32 kg/sqm
Advantages

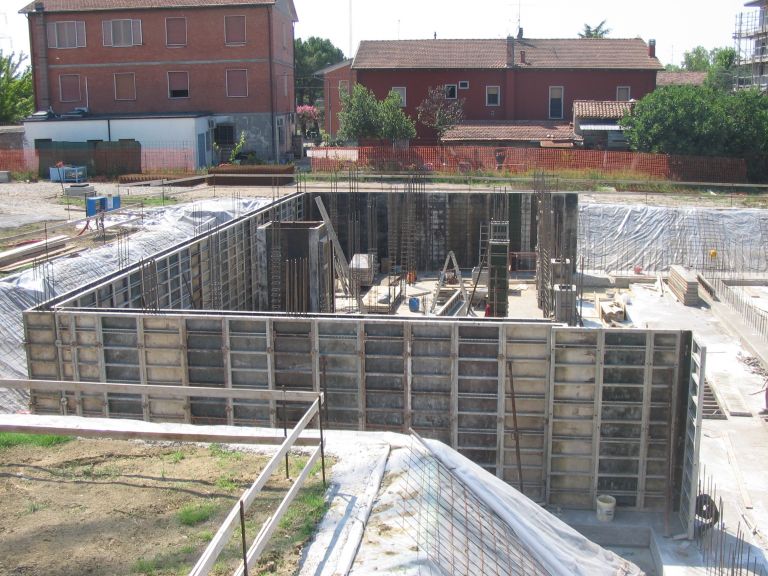

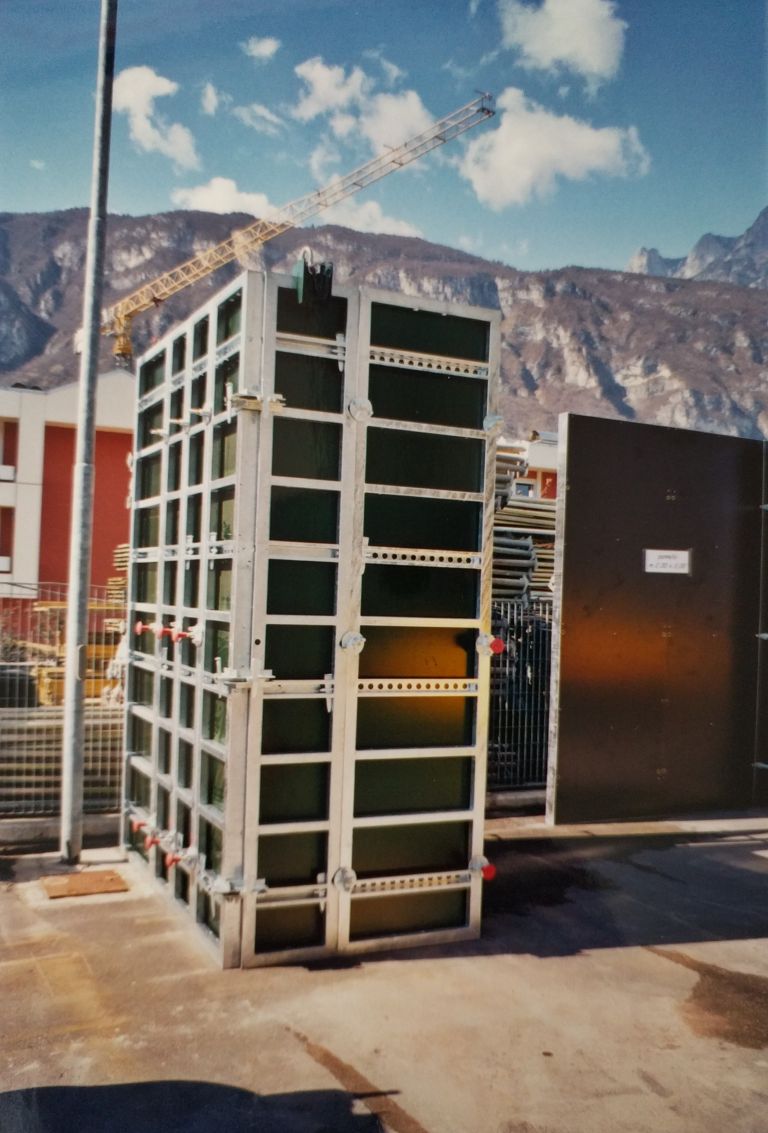

- Versatility: panels can be assembled both vertically and horizontally to achieve desired heights and create various structures like footings, elevator shafts, and adjustable columns
- Easy assembly and disassembly
- Technological simplicity: few standard accessories
- Aesthetics: the plywood lining allows for perfectly smooth concrete surfaces and enables high-frequency reuse
Availability
- New
- Used
- Rental (with rent-to-own option)
